- DUAL STEREO BALANCED SIGNAP PATH!
- FULLY BALANCED IN/OUT !
- LOW NOISE -110dB SNR!
- REQUIRE ONLY+15DB GAIN MAKEUP relative to 0dB (by default)
Can be left free inputs 4 - 8 ins or more without problem!
Can handle external instruments, synths, drummachines, all DAW interface, like Digidesign 192, RME, Lynx Aurora, Apogee, Motu, Focusrite etc.
Please note!
Other brand summing mixers on marketplace requires minimum +30+45dB makeup gain! - therefore they need expensive preamp for gain makeup from -30-45dB without noise pick up! By basic LittleOne range you need only +15dB gain make up by your DAW instrument input or micpre amp!
LittleOne Passive Summing mixer come with 3 type of gain make up requirements:
Required Make Up Gain Range relative to 0dBsf (please let me know before make order)
*by default the mixer come with: -15dB insertion loss value relative to 0dBsf
- LOW: -15dB gain up ideal for entry level preamps or DAW mic pre or instrument input
- MID: -20dB gain up ideal for mid range preamps or DAW mic pre or instrument input
- HIGH: -26dB gain up ideal for high range preamps like Neve, Api, Avalon or DAW mic pre or instrument input up to 60dB make up gain
For unique order can buit in additional extra feature:
- variable headroom switch option: -15dB / -25dB
- 21 step precision attenuator range: -10dB / -30dB relative to 0dB
Fully balanced Solid State Discrete summing network. The components are tested and selected. (Vishay Dale resistors) Good quality components result the correct and low noise operation. The summing network PCB is own development, and absolutly hand made. The front/rear panel design based on unique idea. Unique ideas, plans like: channel number, design(your name or studio name) connections (DB25, TRS etc.) please contact me, to make the most appropriate gear for your studio! (build time 5-10 working days) Please click to order page.
- SUMMING: Dual Stereo Discrete Passive Summing network 8:2 line input
- Selected VISHAY DALE military metal-film resistors!
- In/Out:Balanced, floating to ground
- Insertion input resistance: -15dB / -20dB / -25dB (order)
- Output impedance 600-1k ohms balanced
- Output level: -15 dB nominal (basic setup)
- Frequency response: 0-500Khz
LittleOne 8x2 DB25 in TRS out
Entry level LittleOne 8 balanced input ANALOG Passive Discrete Summing Mixer
8 bal INPUT (BD25) and 2x(1,4" TRS) Balanced L/R OUTPUT
4 stereo balanced in = 4Left and 4Right input
- Crosstalk 1Khz: -95dB
- In/Out: Balanced, floating to ground
- Signal/ Noise rate: -110dB (RME HDSP tested, no DAW inputs connected)
- Balanced input: 8 inputs L/R = 4 Stereo CH by DB25
- Balanced output: 2 balanced L/R out (1,4"TRS)
- TRS connection wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
- DB25 Tascam standard Balanced Inputs
LittleOne 8x2 with 1xStereo to mono option DB25 in TRS out
LittleOne 8 balanced input ANALOG Passive Discrete Summing Mixer
1xStereo to mono on CH1 = 2mono by front panel switch
8 bal INPUT (BD25) and 2x(1,4" TRS) Balanced L/R OUTPUT
4 stereo balanced in = 4Left and 4Right input
Price: 99 GBP
Price: 139 GBP
LittleOne 16x2 with DB25 in TRS out
LittleOne 16 balanced input ANALOG Passive Discrete Summing Mixer
16 bal INPUT (BD25) and 2x(1,4" TRS) Balanced L/R OUTPUT
4 stereo balanced in = 4Left and 4Right input
Price: 179 GBP
Price: 199 GBP
LittleOne 16x2 with 1xStereo to mono option DB25 in TRS out
LittleOne 16 balanced input ANALOG Passive Discrete Summing Mixer
16 bal INPUT (DB25 Tascam) and 2x(1,4" TRS) Balanced L/R OUTPUT
8 stereo balanced in = 8Left and 8Right input
Price: 214 GBP
LittleOne 16x2 with 2xStereo to mono option TRS in TRS out
LittleOne 16 balanced input ANALOG Passive Discrete Summing Mixer
16 bal INPUT (1/4" TRS) and 2x(1,4" TRS) Balanced L/R OUTPUT
8 stereo balanced in = 8Left and 8Right input
Price: 269 GBP
LittleOne 16x2 with 2xStereo to mono option DB25 in TRS out
LittleOne 16 balanced input ANALOG Passive Discrete Summing Mixer
16 bal INPUT (DB25 Tascam Analog) and 2x(1,4" TRS) Balanced L/R OUTPUT
8 stereo balanced in = 8Left and 8Right input
Price: 249 GBP
Passive Summing Mixer
Price: 119 GBP
LittleOne 8x2 with 1xStereo to mono option TRS in XLR out
LittleOne 8 balanced input ANALOG Passive Discrete Summing Mixer
8 bal INPUT (TRS Balanced) and 2x(XLR) Balanced L/R OUTPUT
8 stereo balanced in = 4Left and 4Right input

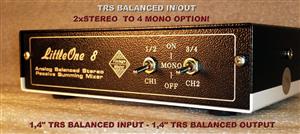

LittleOne 8x2 with 2xStereo to mono option TRS in TRS out
LittleOne 8 balanced input ANALOG Passive Discrete Summing Mixer
8 bal INPUT (TRS Balanced) and 2x(TRS) Balanced L/R OUTPUT
8 stereo balanced in = 4Left and 4Right input
Price: 189 GBP
LittleOne 8x2 with 1xStereo to mono option TRS in TRS out
LittleOne 8 balanced input ANALOG Passive Discrete Summing Mixer
8 bal INPUT (TRS Balanced) and 2x(TRS) Balanced L/R OUTPUT
8 stereo balanced in = 4Left and 4Right input
Price: 149 GBP
Why are the Vintage Maker summing mixers so much cheaper than all the other brands?
VintageMaker is a small manufacture who deals directly with You without markups from distribution and retail channels.
VintageMaker use the same high grade components used by all the other manufacturers. There is no compromise there!
High quality components result the correct and low noise operation of the popular summing network designed / developed by Vintage Maker, therefore is the most liked passive solution since 2010!
Passive Discrete Analog Summing mixers for awesome analogue mixing tips and tricks by Vintage Maker the summing mixer builder craftsman!
More products: 1U - 2U - 3U Mixers from 4 Input up to 96 input channel
You can see more than 130 items, Most of products are no price indicated because of its unique setup.
"Really cool passive analog summing box. Really well made. Noiseless, infinite headroom and no power required. The best way to mix outside the computer, enjoy clip free summing and then use the mic pres of your choice to send your mix back to your DAW. 4channels can be assigned mono for vocals, kick, bass and snare for example." (customer review)
