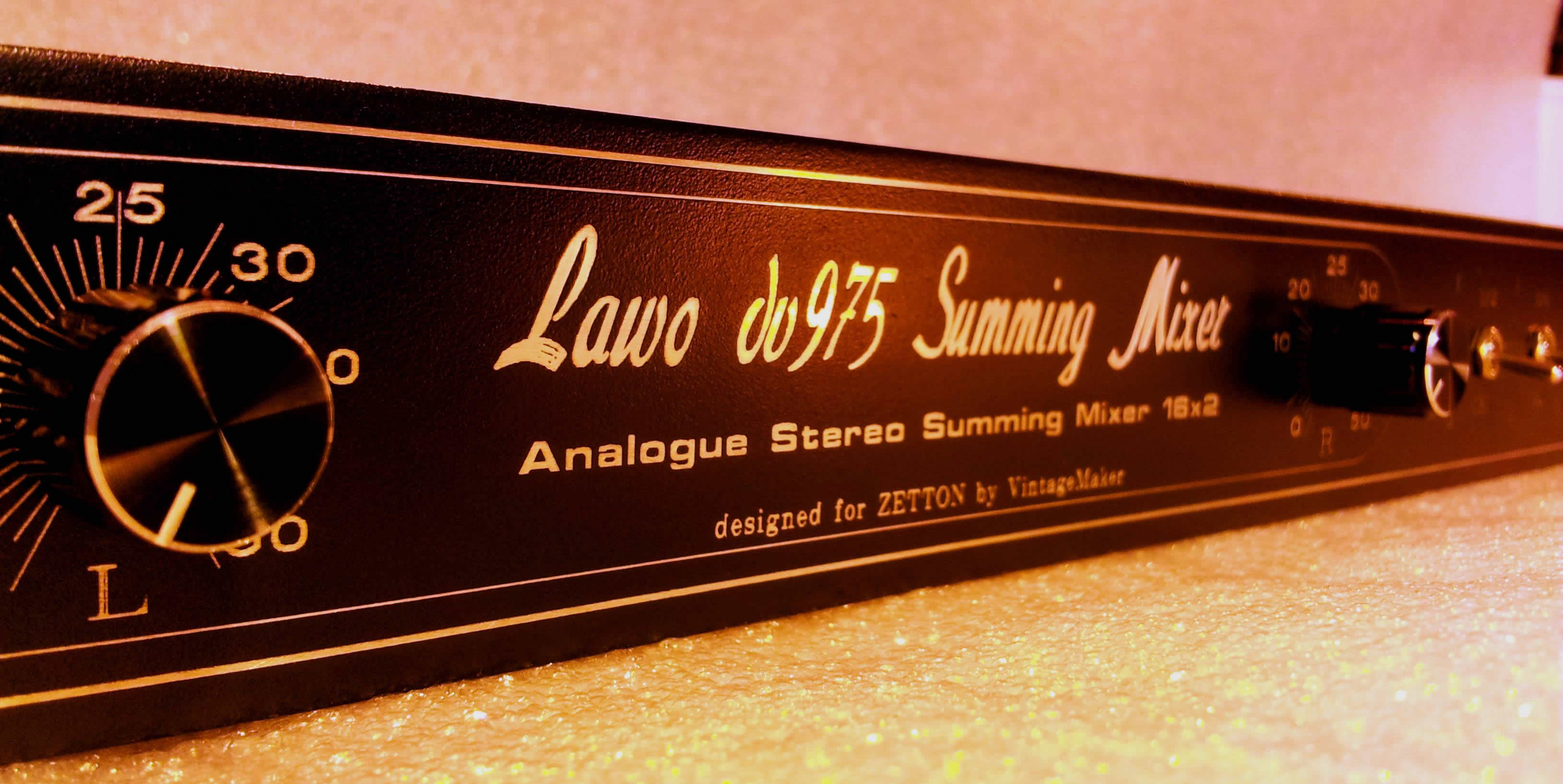

Custom built Full balanced Discrete Solid state Analog Summing Mixer with legendary High performance Lawo audio transformers sound designed for your studio!
AMP: Lawo DV975 Dual mutually independent Vintage summing amplifier
(dual stereo balanced - up to 100 inputs - based on tech. doc. Lawo GmbH)
Max output gain: + 30dBm
Max input gain: + 6dBm
Gain adjustment range: +6 - 30dB)
Standard level inputs: Balanced, floating to ground
Standard level outputs: Balanced, floating to ground
Output impedance (load imp) : >300ohm
Crosstalk attenuation: >110db from channel to channel
Frequency response: <+0/-0,25dB (20Hz to 20kHz: <+0/-0,5dB
Signal/ Noise rate: <-101dBqp (measured with not connected DAW inputs)
Extraneous signal level with V=0db : <-99dMrms/-94dBmrms with 1/30 sources

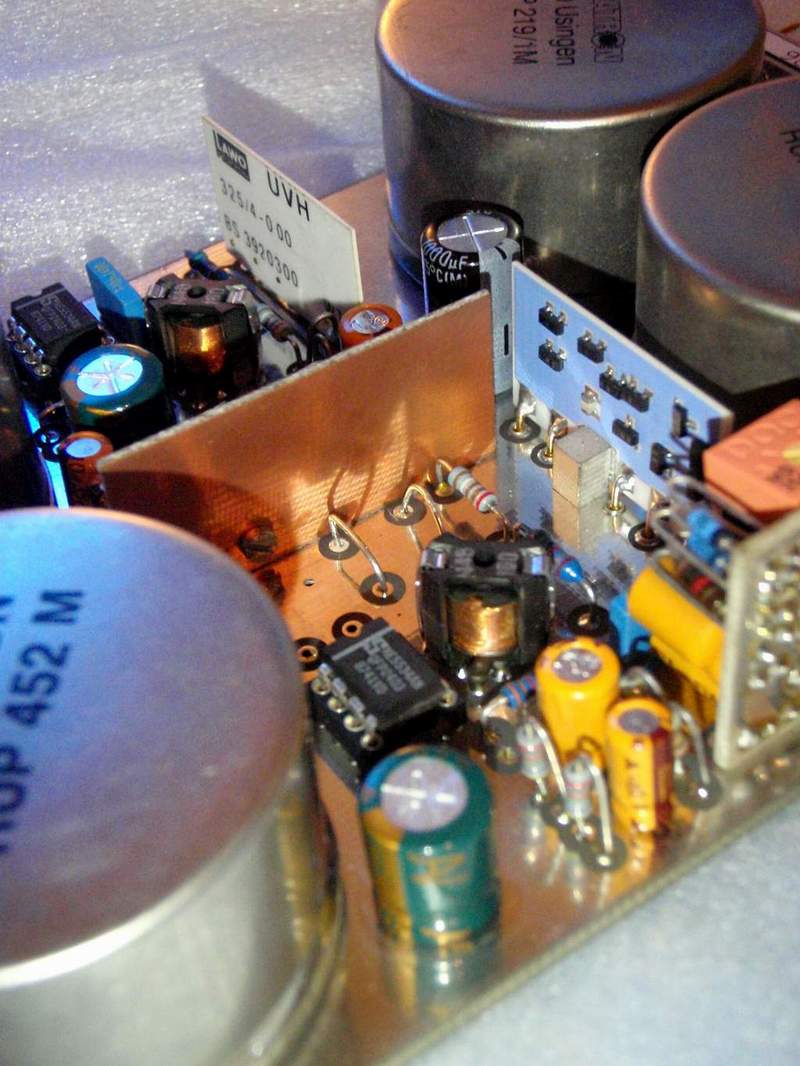

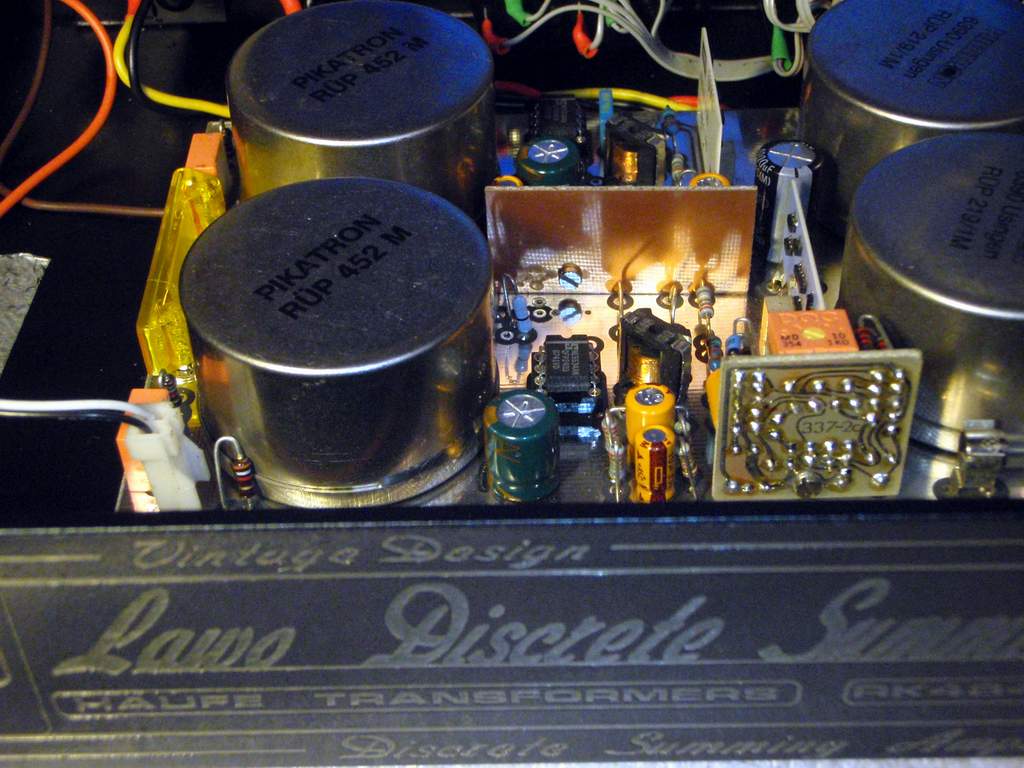

Transformers: Haufe / Pikatron
SUMMING: Discrete Stereo Balanced Summing network
Selected Vishay Dale metal-film resistors
In/Out: Balanced, floating to ground
Signal/ Noise rate: -101dB
TRS connection wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Operation voltage: 21,6 - 28V/100mA
100 – 240//24V – 0.8-1.5A adapter + 2pin connector
Laser engraved unique design(front/rear panel)
Rack Color: RAL BLACK or metalised green-blue
Unit Weight: 3.1Kg(7 lbs), Packed (with adapter+cable) weight ca. 4,2kg(9 lbs)
Before You connect the summing: https://www.youtube.com/watch?v=XLfL7VgBgfI&t
Simple Signal routing: https://www.youtube.com/watch?v=n9nBIP-Rttc&t
Stereo to mono input demo: https://www.youtube.com/watch?v=VK9YBU7J7Gg&feature=youtu.be
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
"I was used to mixing in the box, and I knew my way around it. You always need to make more room. I realized I wasn’t doing that anymore, and was not needing many of the tricks I used to do to get closer to what I was hearing in my mind, so I wanted to learn how much headroom I got. I fed my converters with the hottest signal in the center of the panorama and started automating the faders around it. Soon enough, the magic happened: the summing box started purring like a happy big cat and I knew that was the sound I always struggled to reach, the famous and legendary “warmth and openness of analog” I so many times read about. "The analog sweetspot".
Why No A/B comparison tests?
Every studio setups are different, different mixing strategy, different style, sound and production, can't reproduce Your studio environment, your studio setup, your monitor type, sound, preamp, amp, gain adjustment, cable, and etc..etc...
Select Your desired setup by completing the following list, then send me your setup to make the best gear for your studio!
- Rack unit size: 1U, 2U, 3U
- Active (inside amp) or Passive (no internal amp) or both 2in1 (Active/Passive)
- Card type: Neumann 2A, 2B, 2C, Lawo, Filtek or *NE2OX
- Input number CH: eg. 16 in = 8Left and 8 Rigt input
- Input type: TRS or DB25 or XLR (XLR need more space,usually 2U)
- Out number: 1xStereo, 2xStereo (Main/Monitor) 3xStereo or more
- Out type: TRS or DB25 or XLR (XLR need more space,usually 2U)
- Master out control by switch: eg. - A/B/C/D out signal ON/OFF
- Stereo to mono input option: 1x, 2x, 3x or more (1xStereo to mono = 2 mono)
- Active/Passive by switch option (Active=Internal Amp / Passive=External Amp)
- Send/Return/Bypass by switch via TRS / DB25 / XLR balanced
- Multiple chained Send/Return/Bypass by switch as SNDA / SNDB /SNDC etc
- Partial SUM Bypass or Total SUM Bypass on desired stereo input CH
- Stereo to mono option on master out (for mono compatibility test)
- POWER LED: Blue, Yellow,Green, Red
- 110-220VAC / 18-24VDC PSU (EU/UK/US Plug)
- Unique engrave your Name or Studio Name
- Unique design based on your ideea (send me your design)
- Your shippinng address to determine the shipping fee
Lawo DV972 (all style)
Price: 669 GBP
(basic setup)
Payment by PayPal or Bank transfer
Accept USD / EURO / GBP
More products: 8 - 16 - 24 - 32 - 64 - 96 Input channel summing mixers
Most of products are no price indicated because of its unique setup.
Please contact me for actual price!
Feel free to ask!

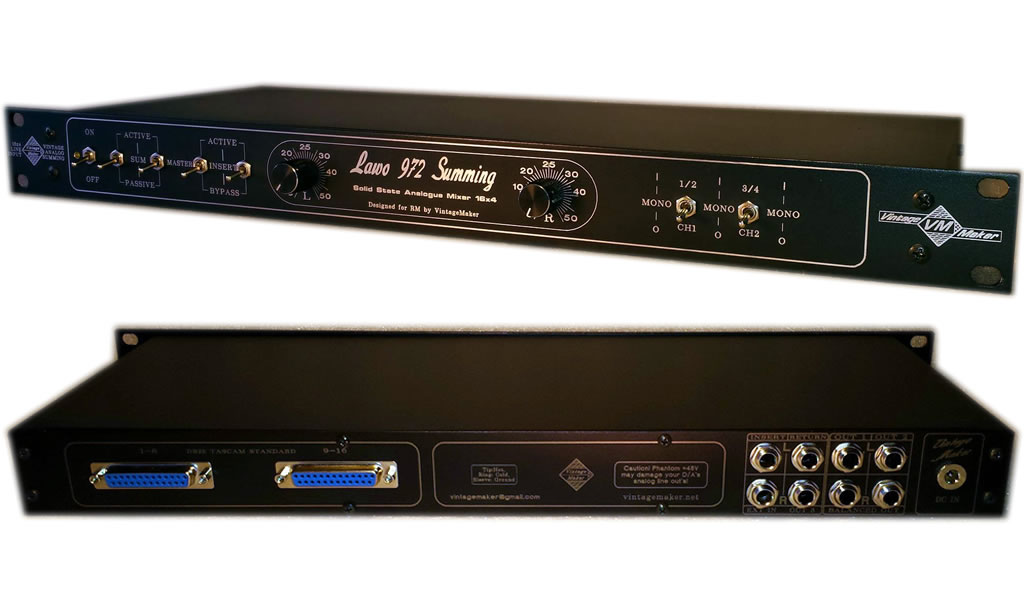

Lawo 16x4 DV975 2xSTM Auto SND/RET
16 Input DB25 DSUB) or TRS 1/4" balanced (order for less or more inputs)
2 x Stereo Out TRS 1/4" Balanced Main/Monitor (order for XLR or more outs)
2 x Stereo to Mono input conversion by switch on ST1 AND ST2 = 4 MONO
Master Active/Passive option by switch (2in1)
Master Send/Return by AUTO TRS
2 x Linear Lawo master gain potentiometer L/R
PSU: 110-240VAC to 18-24 VDC 0,6-1,5A (world wide) EU/UK/US plug
Unique Neame or Logo engrave design (order)
Power Led: Red, Green, Yellow or Blue
Design: medium
Customer feedback - Lawo discrete summing amp sound is "close to SSL sound" Transparent and Clean with really nice harmonics due to legendary Haufe/ Pikatron transformer read more about Filtek/Neumann/Lawo customer feedback / reviews.....
2in1 feature:
Active = Inside Lawo amp / Passive = External DAW amp mic preamp
Benefits: Different amp = Different sound character
Auto TRS: signal non interrupted if nothing connected to SEND
Switch controlled Send/Return by Bypass switch (order)
21 Step precsision master gain control (order)
